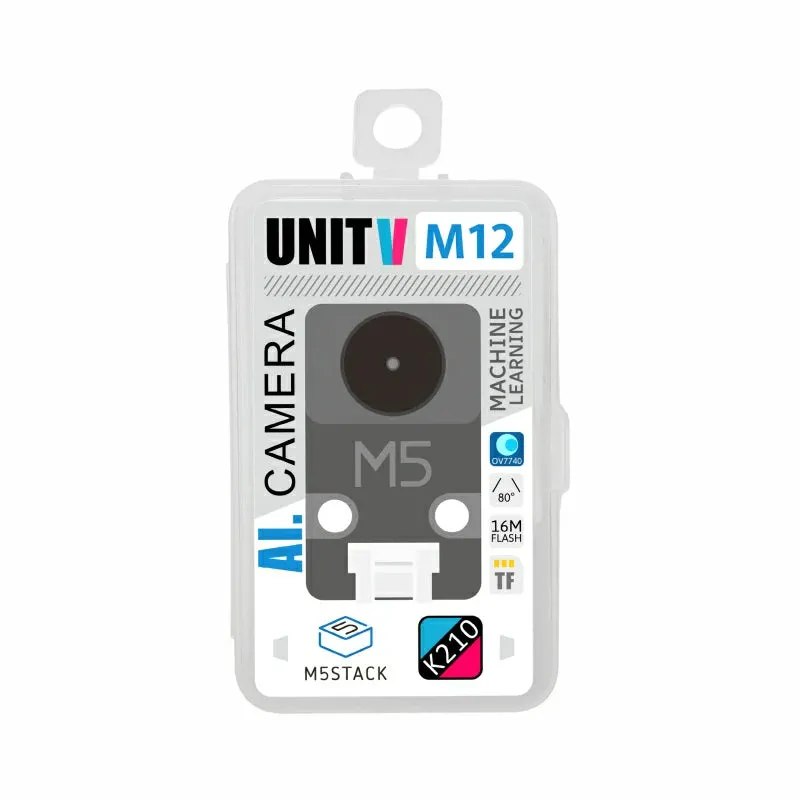

UnitV K210 AI Camera M12 Version (OV7740)
UnitV K210 AI Camera M12 Version (OV7740)
Title:
  • DefaultTitle

$ 0.00

$ 39.90

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

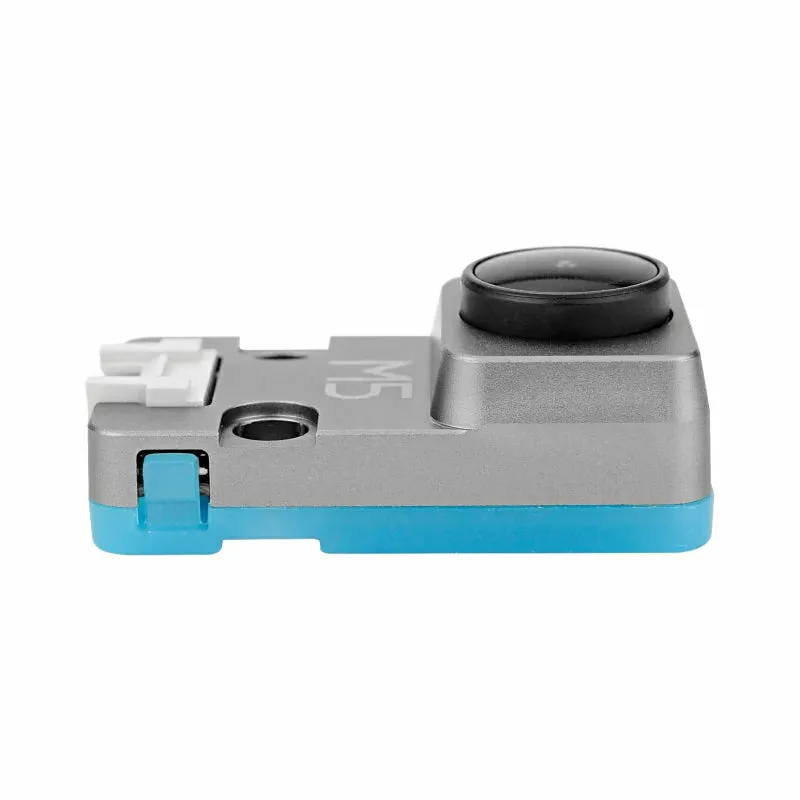

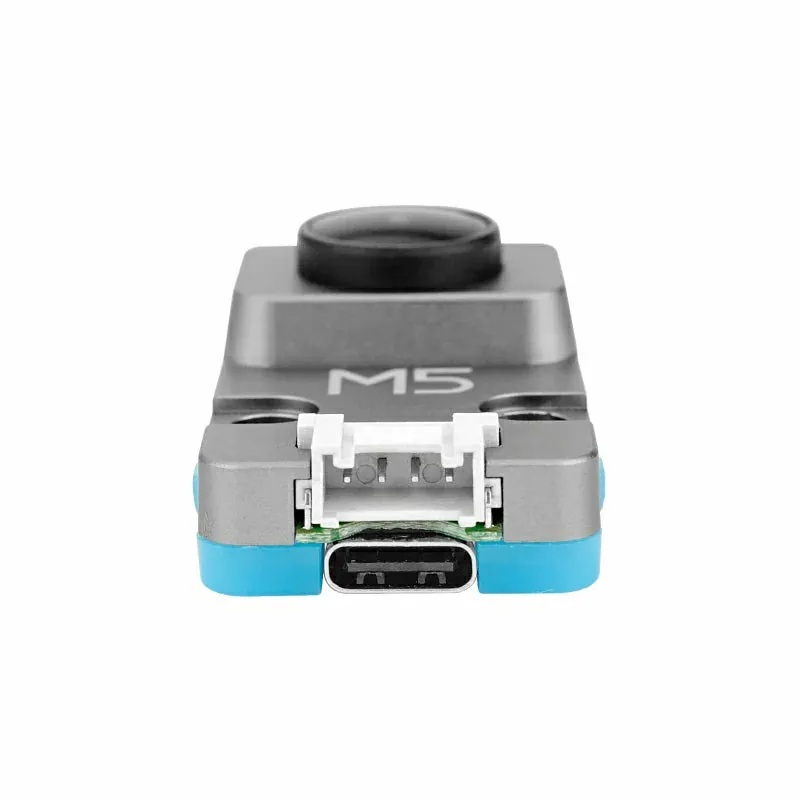

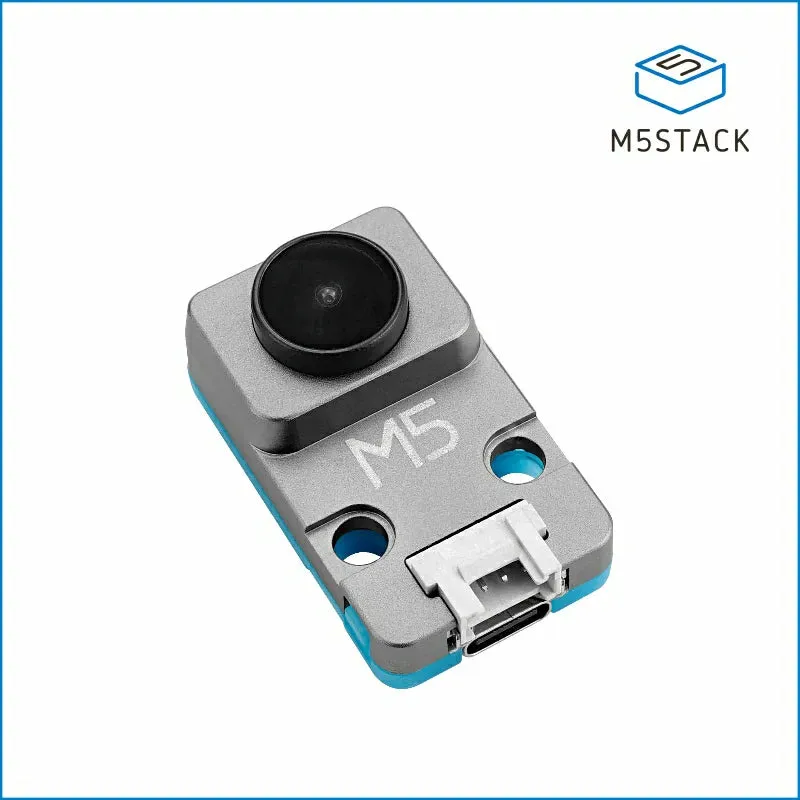

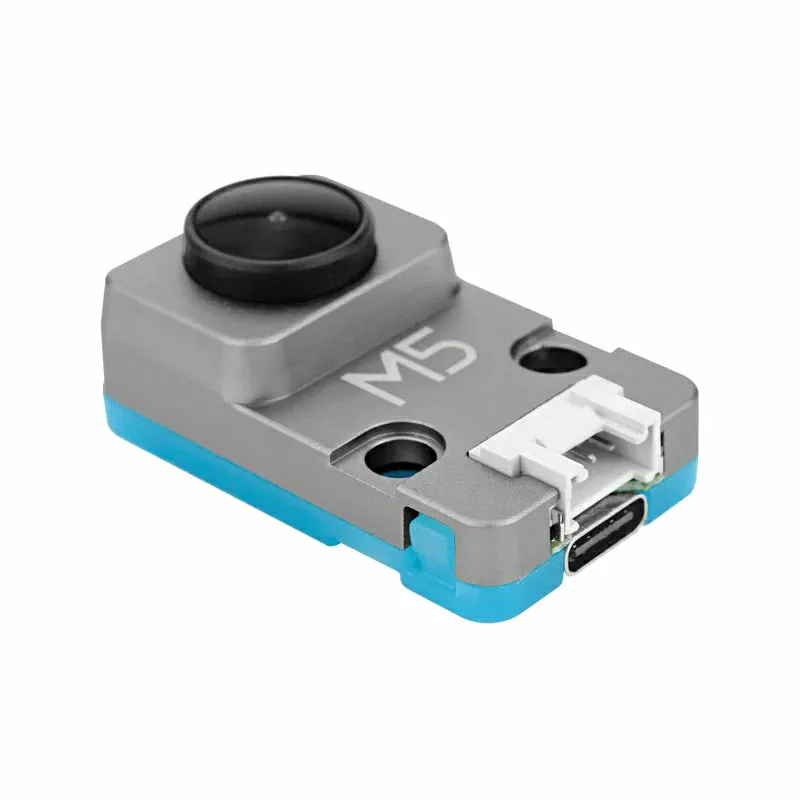

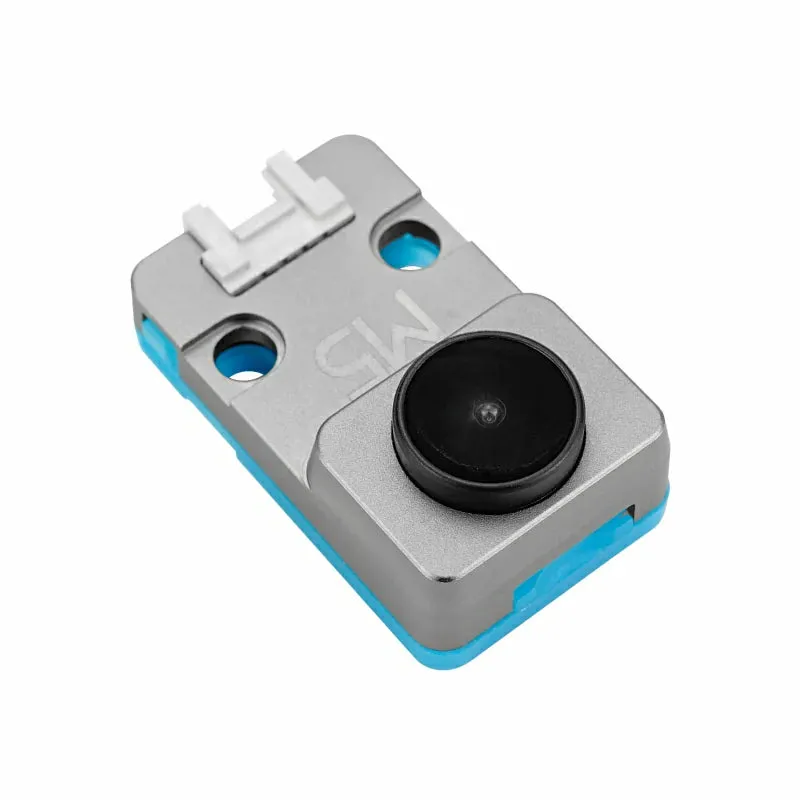

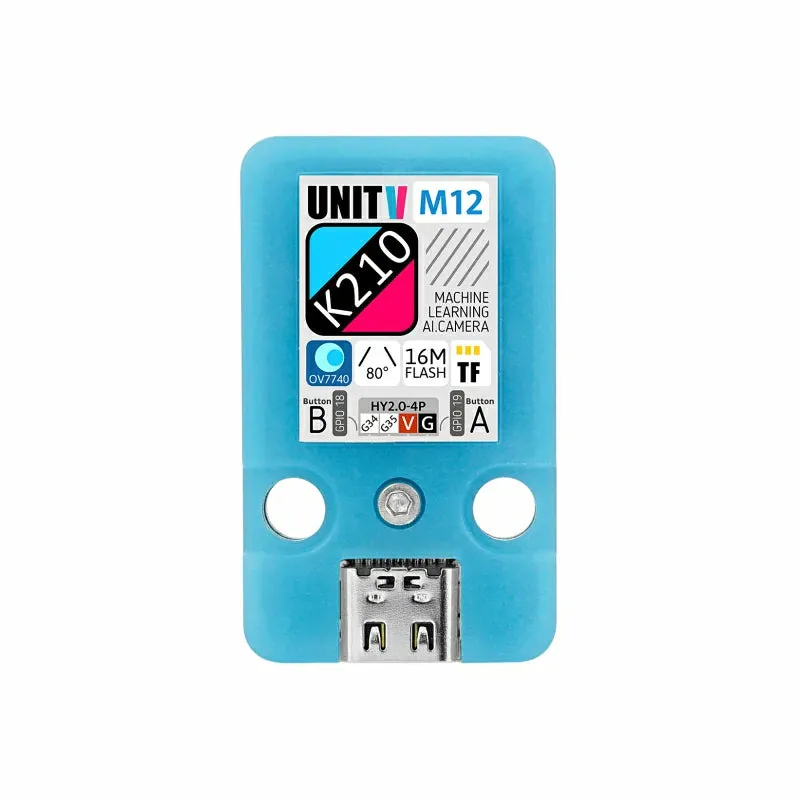

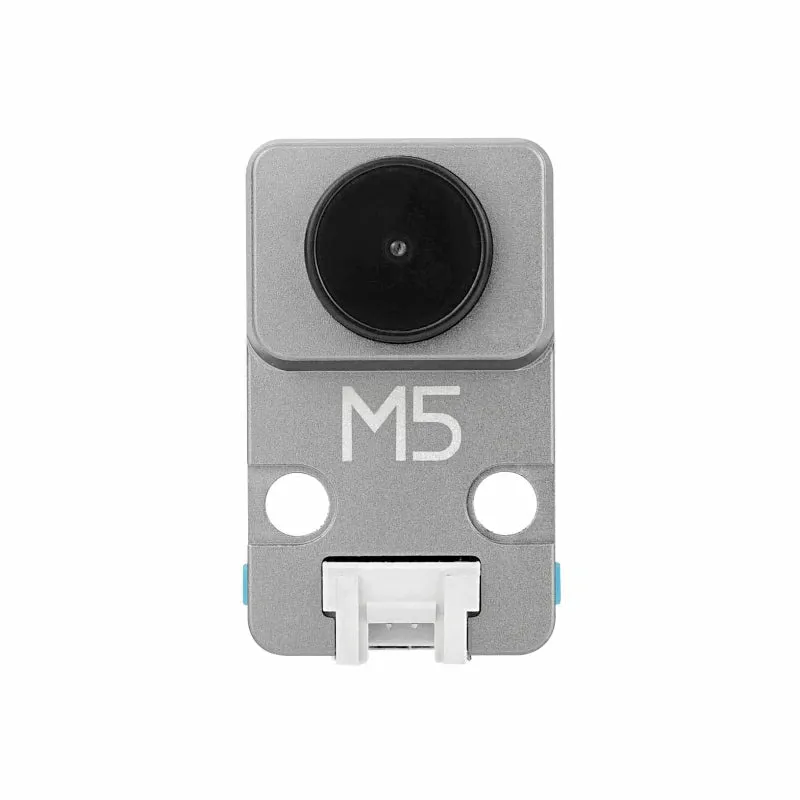

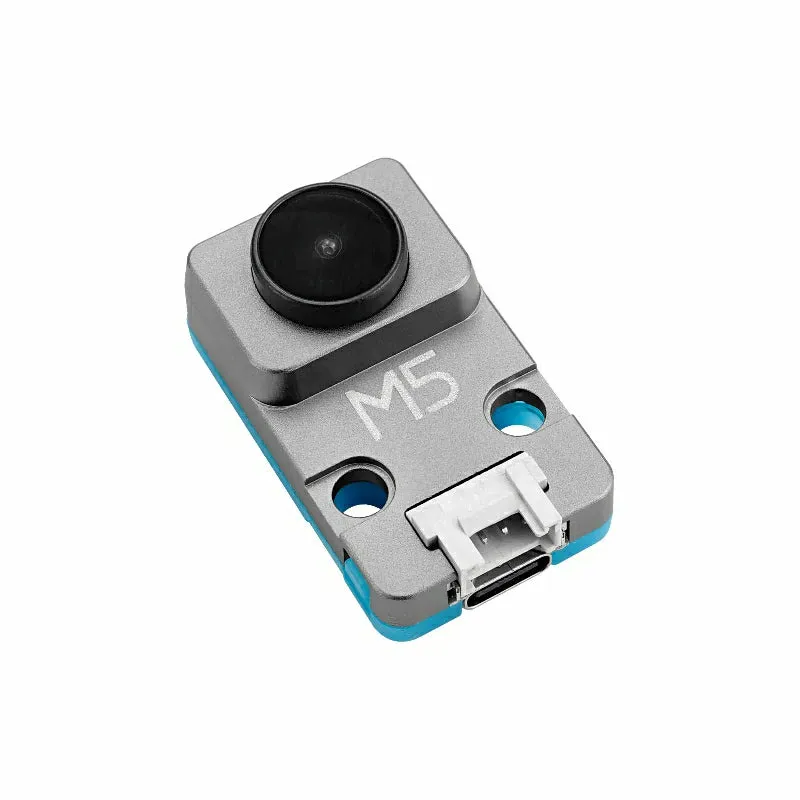

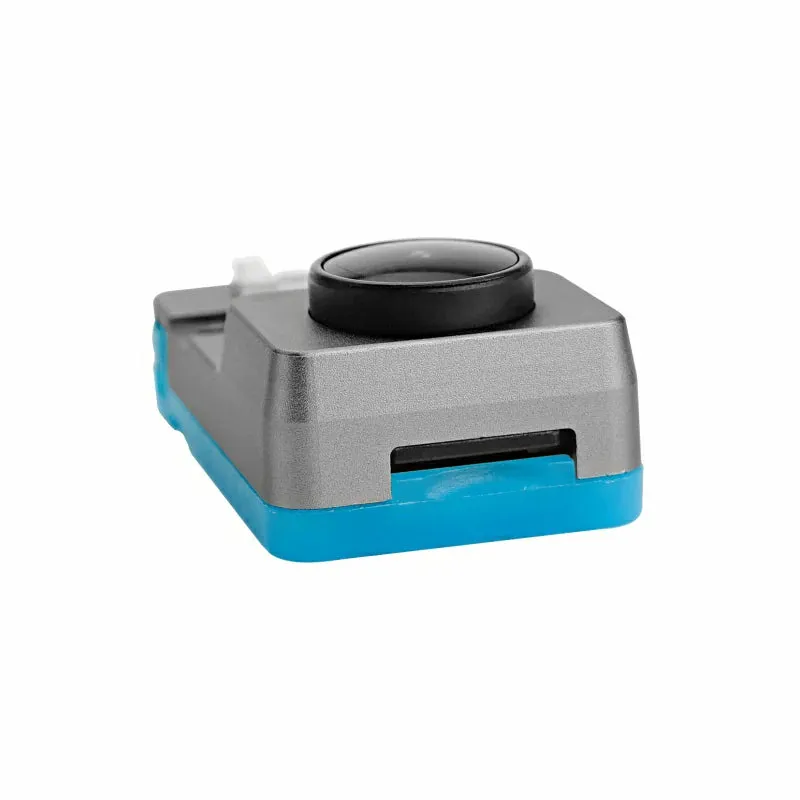

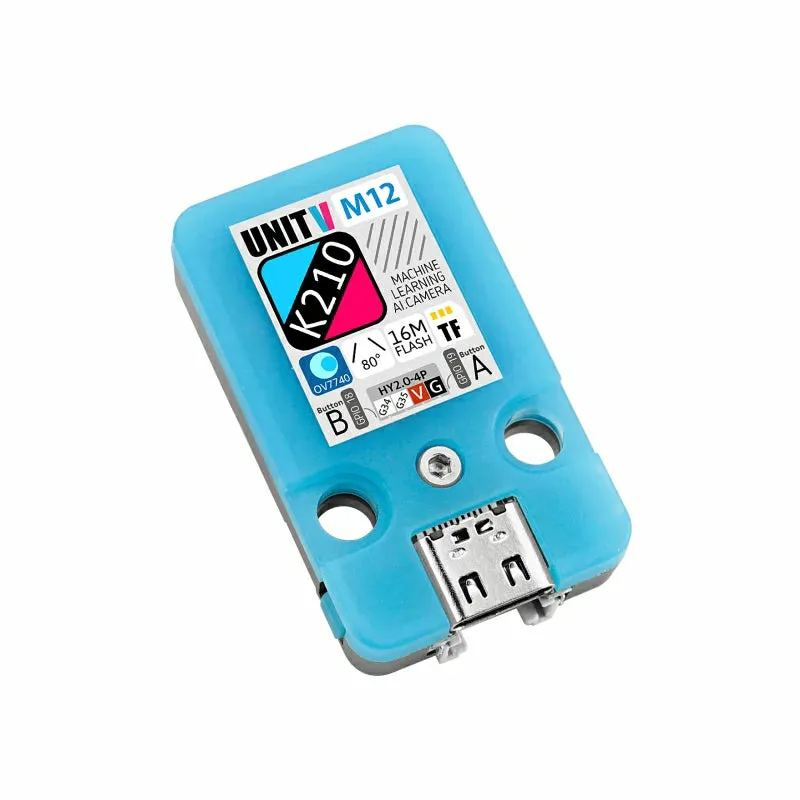

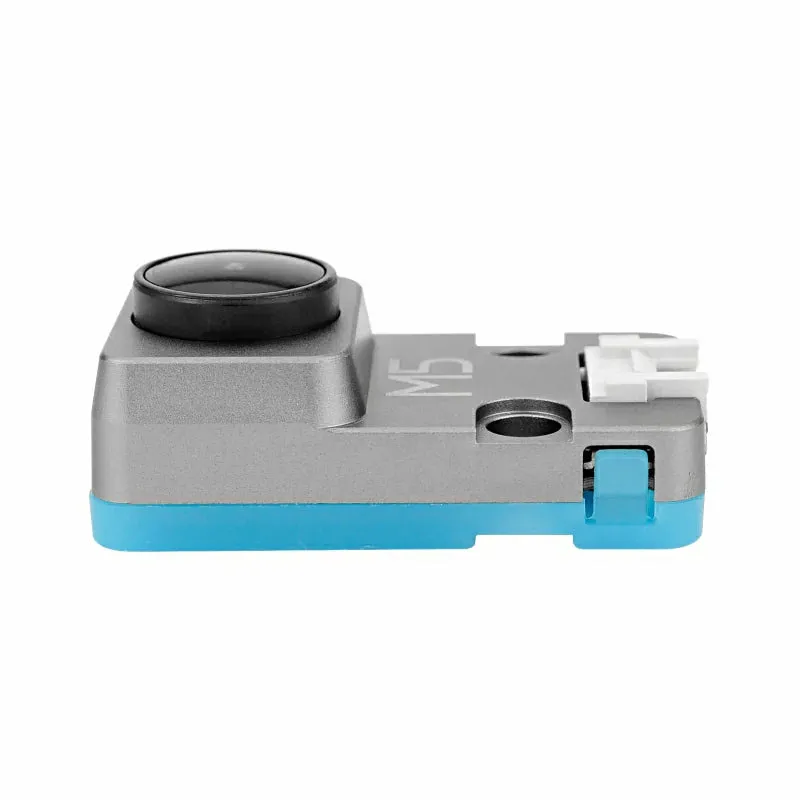

UNIT-V M12 is an AI camera unit with M12 lens specifications and K210 processor, which integrates dual-core 64-bit RISC-V CPU and neural network processor edge computing system-on-chip, it equippes with M12 optical lens OV7740 wide-angle camera module (can replace other M12 lenses), the body is equipped with two programmable buttons and TF card expansion slot. Its bottom provides an HY2.0-4P interface and a TYPE-C interface for data connection to the controller. The UNIT-V M12 AI camera is very small, it is suitable for embedding in various devices, with machine vision processing capabilities, supporting a variety of image recognition capabilities (such as real-time acquisition of the size and coordinates of the detected target Real-time acquisition of the type of detected target), and it can perform convolutional neural network calculations, which is a low-threshold machine vision embedded solution.

Features

  • Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
  • Dual Independent Double Precision FPU
  • 8MiB 64bit width On-Chip SRAM
  • Neural Network Processor(KPU) / 0.8Tops
  • Field-Programmable IO Array (FPIOA)
  • AES, SHA256 Accelerator
  • Direct Memory Access Controller (DMAC)
  • Micropython Support
  • Firmware encryption support
  • On-board Hardware resources:
    • Flash: 16M
    • Camera :OV7740
    • Button: button * 2

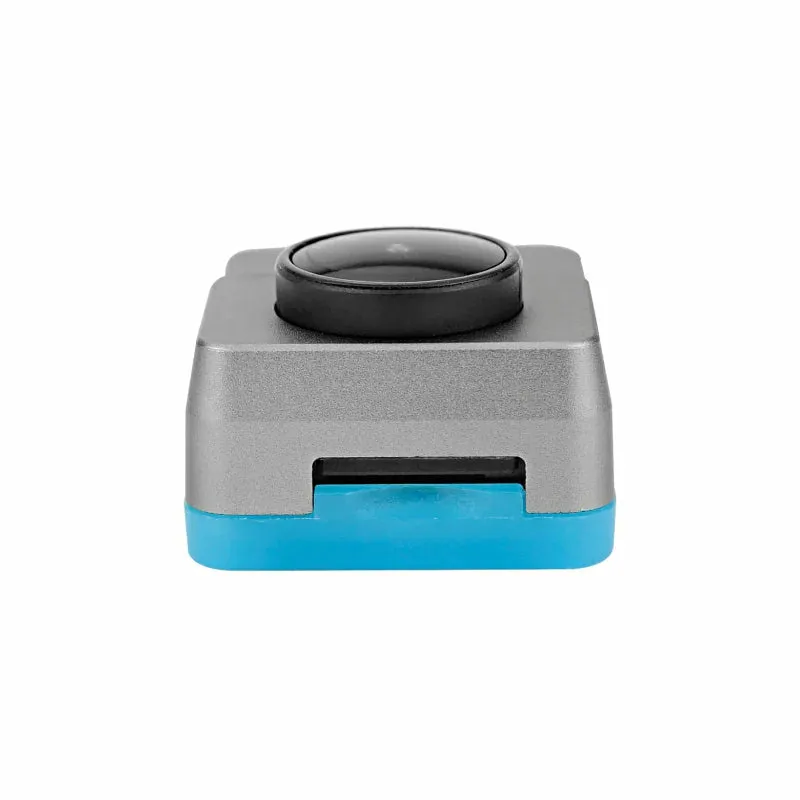

    • External storage: TF card/Micro SD
    • Interface: HY2.0/compatible GROVE

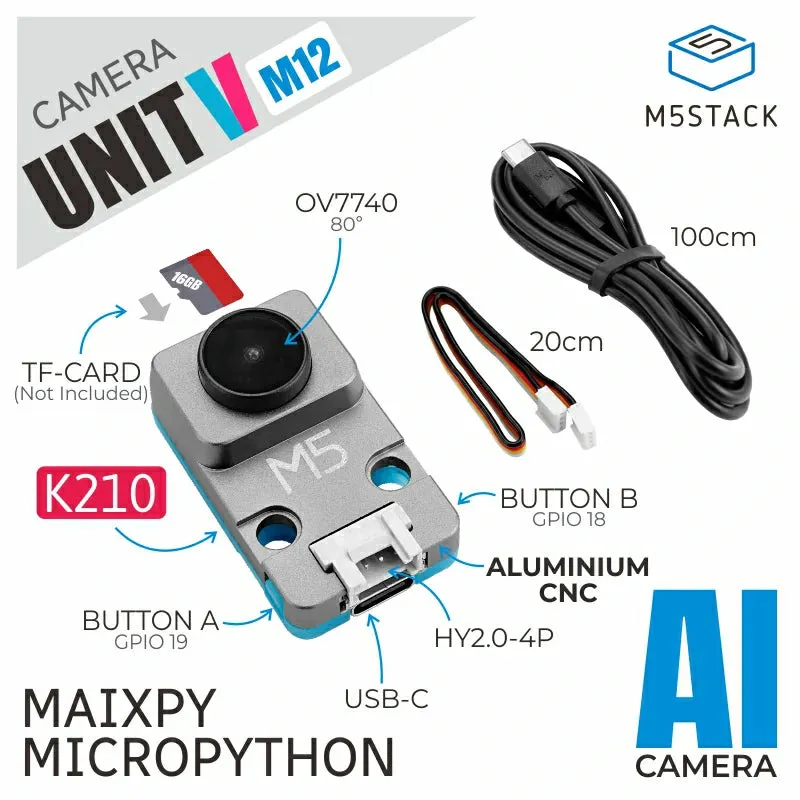

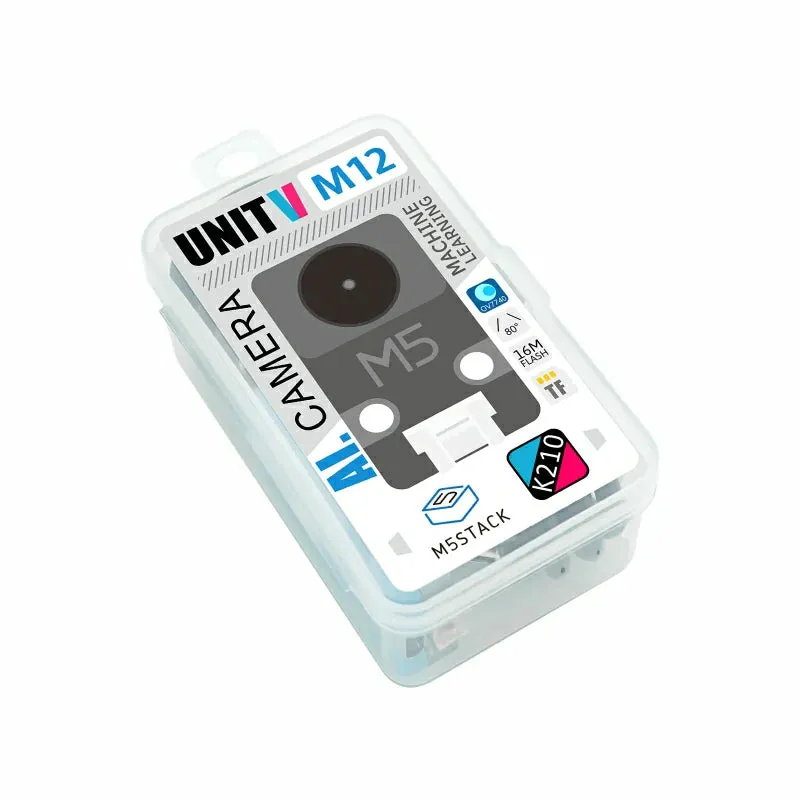

Includes

  • 1x Unit V M12
  • 1x 20cm 4P Grove Cable
  • 1x 100cm USB-C Cable

Applications

  • Face recognition/detection
  • Object detection/classification
  • Obtaining size and coordinates of the target in real-time
  • Obtaining the type of detected target in real-time
  • Shape recognition
  • Video recorder

Specification

Resources Parameters
Kendryte K210 Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM 8MiB
Flash 16M
Input voltage 5V @ 500mA
KPU Neural network parameter size 5.5MiB - 5.9MiB
Interface TypeC x 1, GROVE(I2C I/0 UART) x 1
Button Custom button x 2
Image Sensor M12 wide-angle lens ov7740
FOV 80°
External storage TF Card/Micro SD
shell material Plastic ( PC ) CNC (ALUMINIUM)

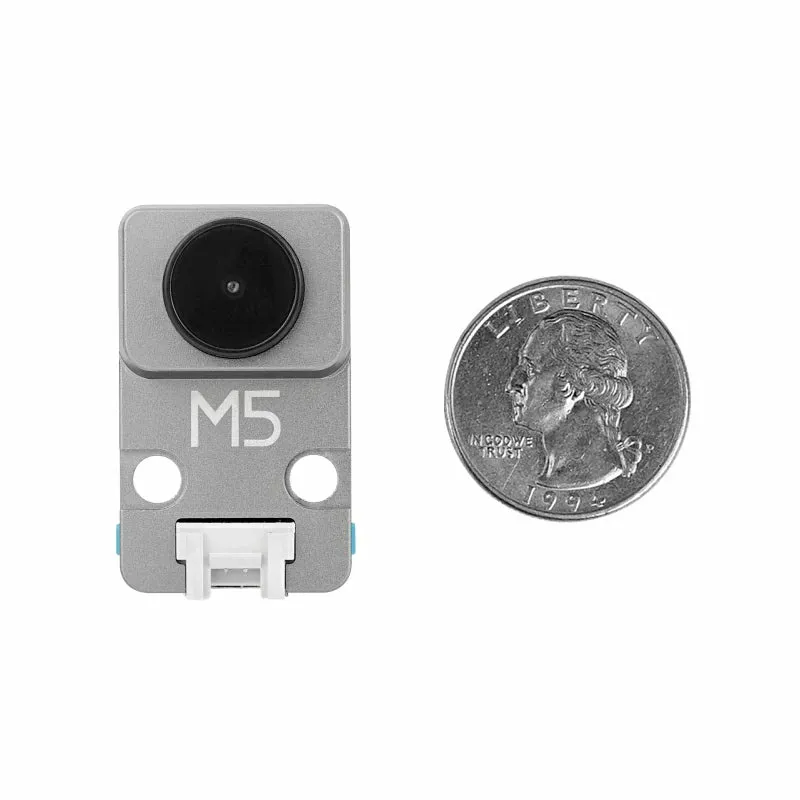

Product Size 40* 24* 16.4mm
Package Size 70* 50* 30mm
Product Weight 13.9g
Package Weight 52.6g
